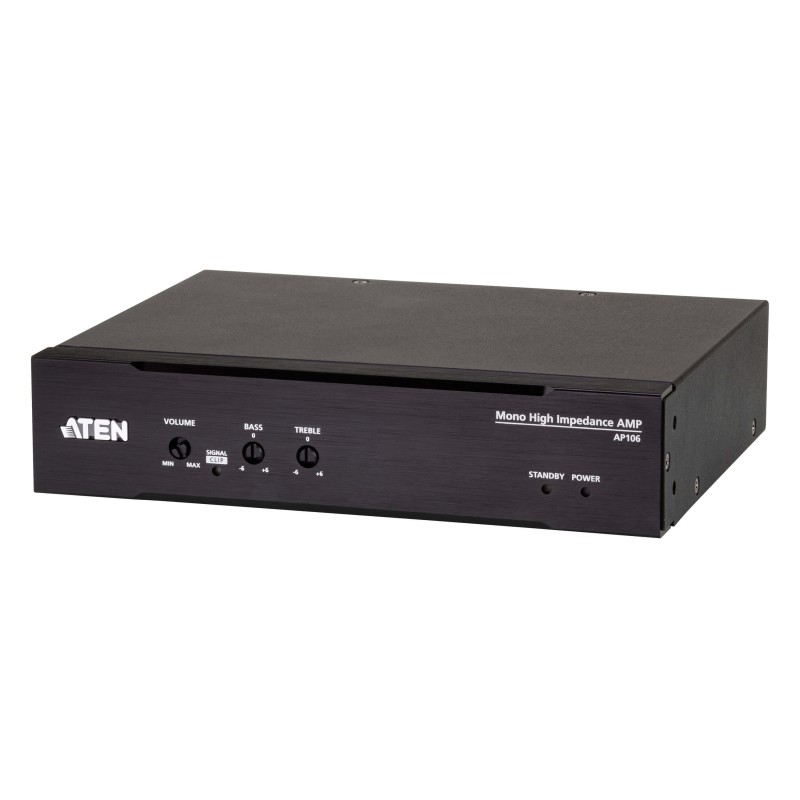

AP106-AT-G - AP106

The AP106 is a 60W power amplifier with Hi-Z outputs capable of driving 70 V / 100 V audio systems. The support for balanced / unbalanced line level inputs enables superior sound quality and installation flexibility. Apart from the overall volume adjustment function, the built-in 2-band shelf EQ provides ± 6 dB boost / suppression of treble and bass control, offering subtle tone shaping and extra control versatility. As a result of the extra headroom this amplifier delivers, accommodating transient audio peaks and preventing distortion is never a problem to the AP106.

With Class D efficiency, the amplifier comes in a smaller, lighter enclosure, yet runs cooler comparing with other classes of amplifiers with the same amount of power. The fanless design helps eliminate operation shutdown brought by fan malfunction and ensures the amplifier not to be vulnerable to outside elements. Constructed in a compact, sealed casing, the AP106 approves of hidden placement, for instance, behind the TV, or even in the dusty environments, such as above the ceiling.

Speaking of the system protection circuit, the AP106, along with the speakers connected to it, is prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Built to be energy-efficient, the amplifier enters Power Saving Mode when no audio input is detectable in 30 minutes and turns back on when a source is detected. Additional features include the front panel LEDs that indicate the device status, plus the bi-directional RS-232 serial port that allows for firmware upgrade and easy integration with ATEN’s Control System, which acts as a centralized platform where hardware devices are converged to be monitored and controlled via an intuitive GUI. The AP106 is perfect for upgrading commercial or residential Pro AV systems where maintaining ultra-low distortion while exhibiting exceptional sound quality is required.

ATEN AP106. Peak power per channel: 120 W, Amplifier class: D, Input impedance: 20000 Ω. Speakers connectivity type: Euroblock. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power protection features: Over voltage, Overheating, Overload, Under voltage. Width: 6.19" (157.2 mm), Depth: 7.87" (200 mm), Height: 1.73" (44 mm). Package weight: 4.01 lbs (1.82 kg), Package volume: 9910.9 cm³

Peak power per channel	120 W
Amplifier class	D
Input impedance	20000 Ω
Output impedance	160 Ω
Frequency range	80 - 20000 Hz
Speakers connectivity type	Euroblock
AC (power) in	Yes
Microphone in	Yes
Purpose	Home
Connectivity technology	Wired
Product color	Black
Material	Metal
Cables included	AC
Master (outer) case volume	36528.73 cm³
Compliance certificates	CE, UKCA
Country of origin	Taiwan
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power protection features	Over voltage, Overheating, Overload, Under voltage
Maximum current	1 A
Width	6.19" (157.2 mm)
Depth	7.87" (200 mm)
Height	1.73" (44 mm)
Weight	2.71 lbs (1.23 kg)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Package weight	4.01 lbs (1.82 kg)
Package volume	9910.9 cm³
Manual	Yes
Master (outer) case width	14.6" (370 mm)
Master (outer) case length	16.8" (427 mm)
Master (outer) case height	9.13" (232 mm)
Master (outer) case weight	13.5 lbs (6.12 kg)
Sustainability compliance	Yes
