VP4UA0A1

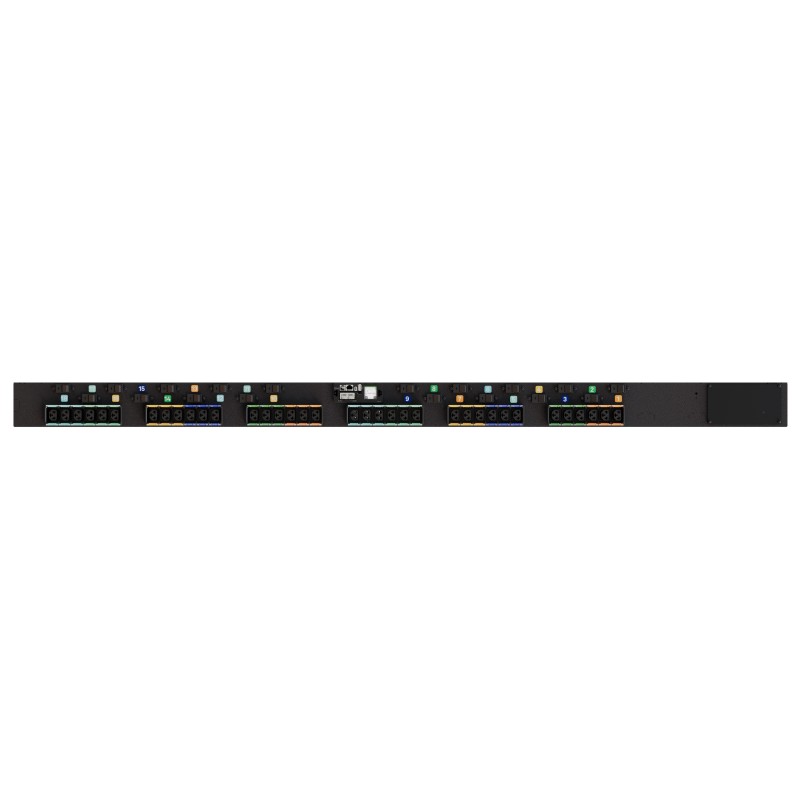

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4UA0A1 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a hardwired input plug providing 57.6kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

Vertiv PowerIT VP4UA0A1. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 36 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Management platform: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 240 - 415 V, Maximum current: 80 A, Power protection features: Over current. Compliance certificates: China RoHS, RoHS, Trade Agreements Act (TAA), Certification: UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1

PDU types	Monitored
Rack capacity	0U
Type	Three-phase
Mounting	Vertical
Product color	Black
AC outlets quantity	36 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
USB ports quantity	1
Management platform	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
Nominal input voltage	240 - 415 V
Maximum current	80 A
Power protection features	Over current
Maximum power	57600 W
Compliance certificates	China RoHS, RoHS, Trade Agreements Act (TAA)
Certification	UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1
Width	3.8" (96.5 mm)
Depth	3" (76.2 mm)
Height	66.3" (1682.8 mm)
Weight	19 lbs (8.62 kg)
Package weight	19 lbs (8.62 kg)
Package width	11" (279.4 mm)
Package depth	87" (2209.8 mm)
Package height	7" (177.8 mm)
Country of origin	United States
