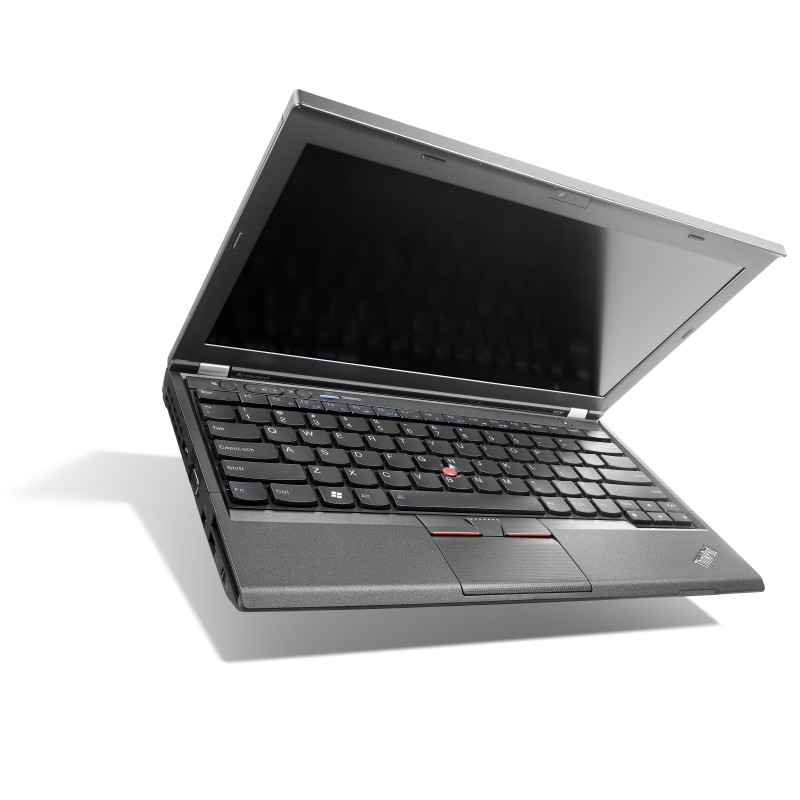

Lenovo ThinkPad X230, Intel® Core™ i5, 2.5 GHz, 12.5", 1366 x 768 pixels, 4 GB, 500 GB
| Product type | Laptop |
| Product color | Black |
| Form factor | Clamshell |
| Housing material | Magnesium |
| Display diagonal | 12.5" |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | Not supported |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 200 cd/m² |
| Dual-screen | No |
| Contrast ratio (typical) | 300:1 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-3210M |
| Processor frequency | 2.5 GHz |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.1 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1023 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-3200 Mobile series |
| Processor codename | Ivy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | L1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| CPU multiplier (bus/core ratio) | 25 |
| ECC supported by processor | No |
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory slots | 2x SO-DIMM |
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x166 |
| Audio system | HDA |
| Number of built-in speakers | 2 |
| Speaker power | 1 W |
| Built-in microphone | Yes |
| Front camera | Yes |
| Front camera resolution (numeric) | 1 MP |
| Front camera resolution | 1280 x 720 pixels |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| WWAN | Installed |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Mini VGA ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Combo headphone/mic port | No |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Serial ports quantity | 0 |
| Motherboard chipset | Intel® QM77 Express |
| Numeric keypad | No |
| Pointing device | ThinkPad UltraNav |
| Full-size keyboard | No |
| Keyboard number of keys | 84 |
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | No |
| Intel® Secure Key | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 31.0 x 24.0 (BGA1023) |
| Supported instruction sets | AVX |
| Processor code | SR0N0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 22 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Fast Memory Access | Yes |
| Processor ARK ID | 65708 |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | Yes |
| Battery capacity | 62.4 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery life (max) | 10.3 h |
| AC adapter frequency | 50 - 60 Hz |
| DC-in jack | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Compliance certificates | RoHS |
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Weight | 3.31 lbs (1.5 kg) |
| Width | 12" (305 mm) |
| Depth | 8.13" (206.5 mm) |
| Height (front) | 0.748" (1.9 cm) |
| Height (rear) | 1.05" (2.66 cm) |
| AC adapter included | Yes |
| LightScribe | No |
| Swivel webcam | No |
