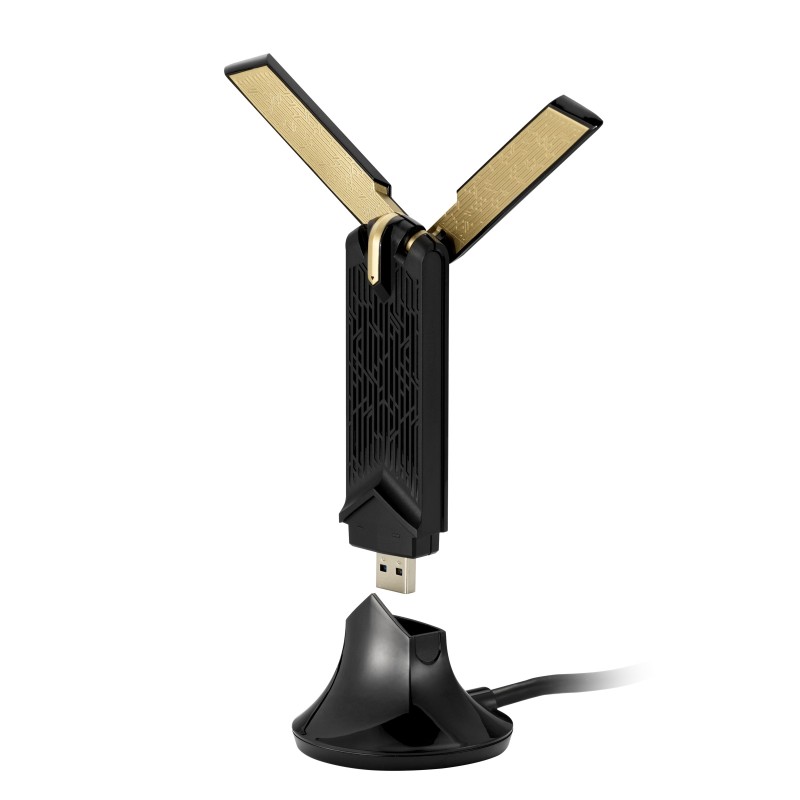

USB-AX56

Instant Upgrade to
WiFi 6
The WiFi 6 standard delivers efficient connectivity that meets the demands of the growing number of connected personal and IoT devices. The USB-AX56 USB adapter gives your laptop or PC an instant plug-and-play upgrade to WiFi 6.

Ultrafast WiFi Speed
USB-AX56 is a 2x2 dual-band WiFi 6 client that lets you take full advantage of WiFi 6 routers. It offers a total wireless bandwidth of up to 1800 Mbps — 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band. That makes USB-AX56 up to 1.5X faster than a WiFi 5 client!*
* Comparing the speed of 2x2 802.11ax on 5 GHz / 80 MHz channels with 1024QAM modulation to speed of 2x2 802.11ac on 5 GHz / 80 MHz channels with 256QAM modulation.

4X More Efficient Connections
OFDMA and MU-MIMO greatly increase connection efficiency, giving improved network capacity.*
* A WiFi 6-compatible router is required to enjoy all the benefits of the WiFi 6 standard.

80% Longer Range
OFDMA divides frequency channels into smaller sub-channels, which means they can travel further.**
**Refers to uplink OFDMA performance.

7X Better Power Savings
Target Wake Time allows devices to sleep when they are not active, reducing power consumption.***
***Compared to WiFi 5. Power savings vary according to the scenario.
The Benefits of WiFi 6

Beamforming Boosts WiFi Range
With beamforming, your router can locate USB-AX56 in order to direct a stronger signal in the direction of your device. Beamforming improves signal strength and hence gives the device better range.

Enhanced WPA3 Network Security
The successor to the well-established WPA2 protocol, WPA3 adds new features that simplify WiFi security, while making your connections much more secure.

Plug-And-Play
USB-AX56 can be plugged easily into laptops or PCs with a USB port to give it full WiFi 6 speed capabilities. USB-AX56 supports a wide variety of operating systems, including Windows 10/8.1/8/7 and Linux, making it the perfect choice for any laptop or PC.

ASUS USB-AX56. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1775 Mbit/s, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). USB powered

Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Maximum data transfer rate	1775 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Security algorithms	WPA3
Internal	No
Component for	PC
Plug and Play	Yes
USB powered	Yes
Weight	1.55 oz (44 g)
