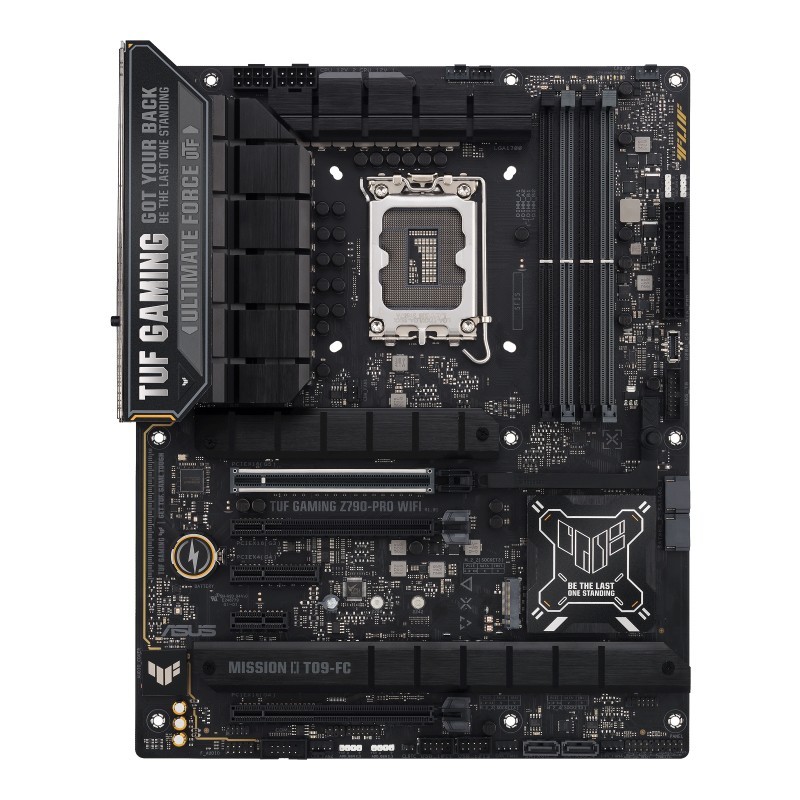

90MB1FJ0-M0EAY0

Data sheet

Windows operating systems supported

Windows 10, Windows 11

Component for

PC

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Processor manufacturer

AMD

Processor socket

LGA 1700

Compatible processor series

Number of memory slots

4

Memory slots type

DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DVI-D ports quantity

0

Wi-Fi

Yes

Memory channels

Dual-channel

Width

12" (305 mm)

Power source type

ATX

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Depth

9.61" (244 mm)

Package weight

4.72 lbs (2.14 kg)

Package width

13.4" (340 mm)

Package depth

10.8" (275 mm)

Package height

2.76" (70 mm)

HDMI version

2.1

DisplayPort version

1.4

User guide

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.2

Wi-Fi standards

Cables included

SATA

Maximum internal memory

192 GB

Supported processor sockets

LGA 1700

Ethernet interface type

2.5 Gigabit Ethernet

Supported memory types

DDR5-SDRAM

Supported memory clock speeds

Line-in

Yes

Drivers included

Yes

Audio output channels

7.1 channels

ECC сompatibility

Non-ECC

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

4

EPS power connector (8-pin)

Yes

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

PCI Express x1 (Gen 3.x) slots

2

Number of M.2 (M) slots

4

BIOS type

UEFI AMI

Clear CMOS button

Yes

S/PDIF out port

Yes

Front panel audio connector

Yes

Audio chip

Realtek S1220A

BIOS memory size

192 Mbit

Parallel processing technology support

Not supported

PCI Express x16 (Gen 4.x) slots

1

12V power connector

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

RGB LED pin header

Yes

WiFi-AP antenna jack

2

Supported memory clock speed (max)

7800 MHz

USB 3.2 Gen 2x2 Type-C ports quantity

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

Specific References

ISBN

978-1-23456-789-0

EAN13

4711387340844

MPN

90MB1FJ0-M0EAY0
