CL5708M-US

Name: CL5708M-US
Brand: Aten
SKU: CL5708M-ATA-AG - US-LAYOUT
Price: 949.1 CHF
Availability: BackOrder

Reference CL5708M-ATA-AG - US-LAYOUT

Brand Aten

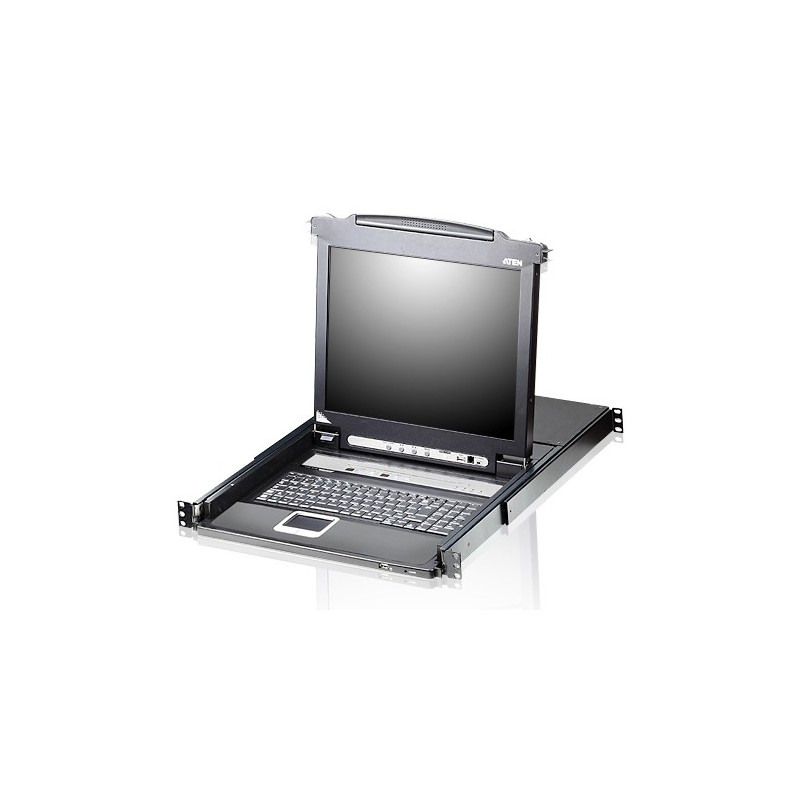

ATEN CL5708M, 1280 x 1024 pixels, WUXGA, Rack mounting, 1U, Black

CHF949.1

Tax included

CHF878.0 Tax excluded

Delayed delivery

Quantity

Will be ordered for you

Description
Product Details

Description

The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

ATEN CL5708M. Keyboard port type: SPHD-17, Mouse port type: USB, Video port type: SPHD-17. HD type: WUXGA, Maximum resolution: 1280 x 1024 pixels, Maximum analog resolution: 1920 x 1200 pixels. Product color: Black, Rack capacity: 1U, Housing material: Metal, Plastic. Display: LCD, Display diagonal: 17". Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

Number of computers controlled	256
Keyboard port type	SPHD-17
Mouse port type	USB
Video port type	SPHD-17
Console ports	SPHD, USB A
Console USB ports quantity	1
USB connector type	USB Type-A
RJ-11 ports quantity	1
AC-in ports quantity	1
HD type	WUXGA
Maximum resolution	1280 x 1024 pixels
Maximum analog resolution	1920 x 1200 pixels
Video bandwidth	75 Hz
Scan interval	1,255 s
DDC2B support	Yes
Hot-Plug support	Yes
Daisy chain	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Product color	Black
Rack capacity	1U
Housing material	Metal, Plastic
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	Yes
Display	LCD
Display diagonal	17"
On Screen Display (OSD)	Yes
Power source	AC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	1 A
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	25.3" (642.7 mm)
Depth	18.9" (480 mm)
Height	1.73" (44 mm)
Weight	29.8 lbs (13.5 kg)
Cables included	AC, KVM
Quick installation guide	Yes
Manual	Yes
Rack mount kit	Yes
Output connections	8x SPHD
I/O ports	1x DB-25

Product Details

Reference CL5708M-ATA-AG - US-LAYOUT

Availability date: 2025-11-28

Condition New

Data sheet

Product color: Black
Windows operating systems supported: Yes
Weight: 29.8 lbs (13.5 kg)
Input voltage: 100 - 240 V
Display diagonal: 17"
HD type: WUXGA
Hot-Plug support: Yes
AC input frequency: 50/60 Hz
Maximum resolution: 1280 x 1024 pixels
Width: 25.3" (642.7 mm)
Height: 1.73" (44 mm)
Depth: 18.9" (480 mm)
Power source: AC
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Hot keys: Yes
Built-in display: Yes
LED indicators: Yes
USB connector type: USB Type-A
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Maximum analog resolution: 1920 x 1200 pixels
Cables included: AC, KVM
Input current: 1 A
Rack capacity: 1U
Display: LCD
Manual: Yes
Housing material: Metal, Plastic
I/O ports: 1x DB-25
Compliance certificates: RoHS
Keyboard port type: SPHD-17
Mouse port type: USB
Video port type: SPHD-17
On Screen Display (OSD): Yes
Quick installation guide: Yes
RJ-11 ports quantity: 1
Firmware upgradeable: Yes
Rack mounting: Yes
Number of computers controlled: 256
Rack mount kit: Yes
Video bandwidth: 75 Hz
Console ports: SPHD, USB A
Console USB ports quantity: 1
DDC2B support: Yes
Scan interval: 1,255 s
Push button: Yes
Daisy chain: Yes
AC-in ports quantity: 1
Output connections: 8x SPHD

Specific References

ISBN: 978-1-23456-789-0
EAN13: 5715063527696
MPN: CL5708M-US
